Socks

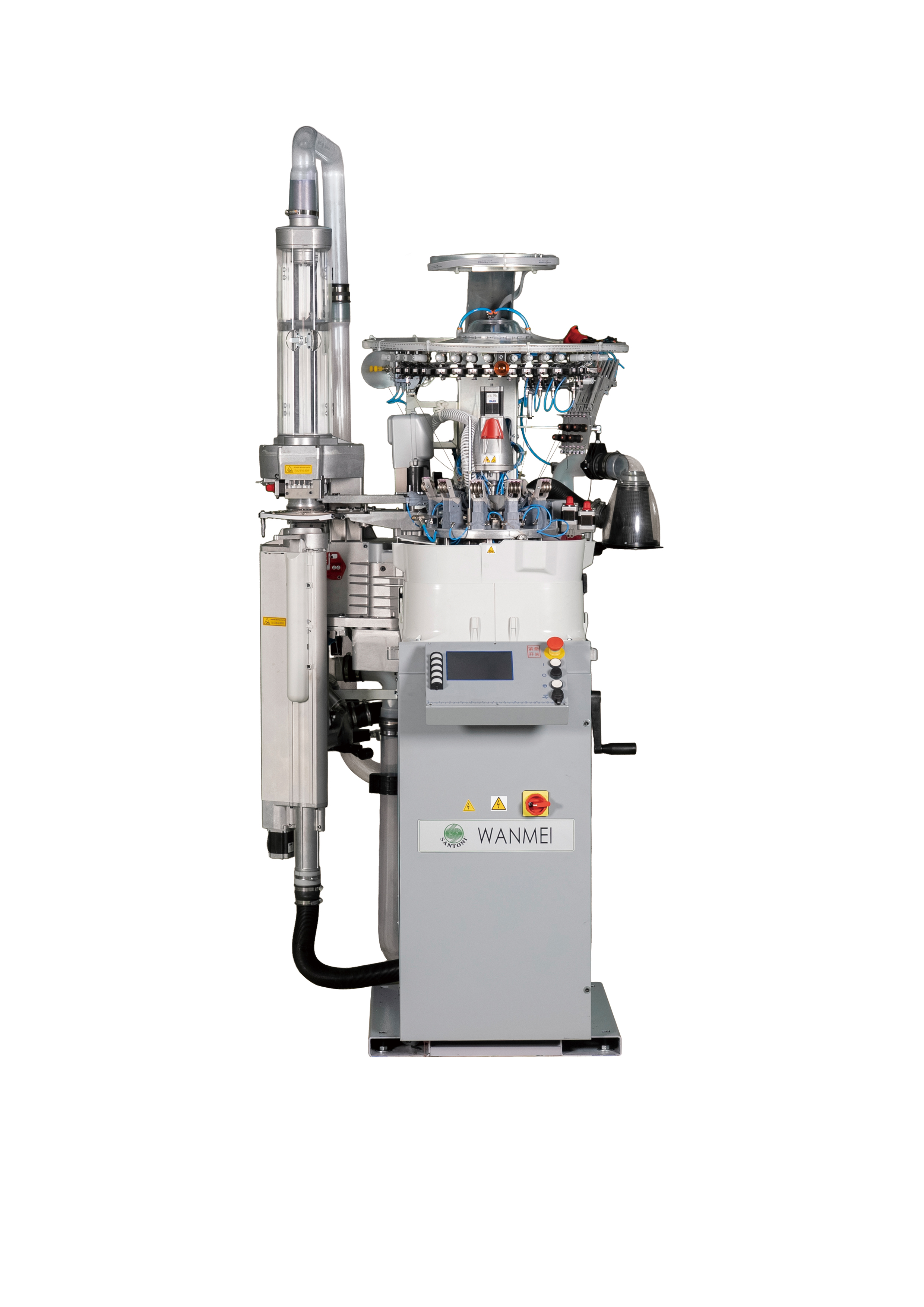

Product name: WANMEI
Product name:
WANMEI
Introduction:
SBYS device for automatic linking
1 feed single jersey circular knitting machine with the possibility of multicolor patterns with reciprocated heel.
Full-electronic programming of the knitting cycle, article and knitting adjustment.
Machine memory capable of storing various articles change by the machine's keyboard or Graph6.
The machines allow production of the socks and pantyhose.
User friendly - Chinese operating interface
4 needle guard plates to avoid breaking needles.
Implementation of “Nautilus” intelligent management system
| Diameter | 3 3/4” | Needle no. | 96 108 112 120 128 116 132 136 144 156 160 168 176 180 188 192 200 |
| Standard Equipment | - 4 needle guard plates - Independent elastic yarn finger with second position - Main feed with 9 yarn fingers - 6 color feeds each with 2 yarn fingers - Ducking stitch cam with three position - 2 independent pickers system for heel and toe - Lowering of dial head by electric driving system - Stitch adjustment by means of step motor - Pneumatic control of needle-rising cams - The circular cutter stops, once dial lifts - Brushless main motor co-axial with the cylinder - 8 “needle by needle” selection unit (pattern drums) | Optional | - Sinker Cap (Terry & High Speed) - Motorized sinker cap - Double motor sinker cap - Motor for Yarn Saw Cutter - Group with 3 yarn finger Color - Blower pushing fabric Double Welt - Extra tensioners for Lycra extra - GRYF feeders - Implementation of “Nautilus” intelligent management system |
| Knitting possibilities | - 6 colors pattern plus ground, tuck and float stitch, plain knit or terry - With laid-in elastic: 5 colors pattern, plus ground color, tuck and float stitch, plain knit or terry - With laid-in elastic: 4 colors pattern, plus ground color, mesh, tuck and float stitch, plain knit or terry - Footlet reinforcement - Socks 3D effect |
| WANMEI 2021V01.pdf | Download PDF |
