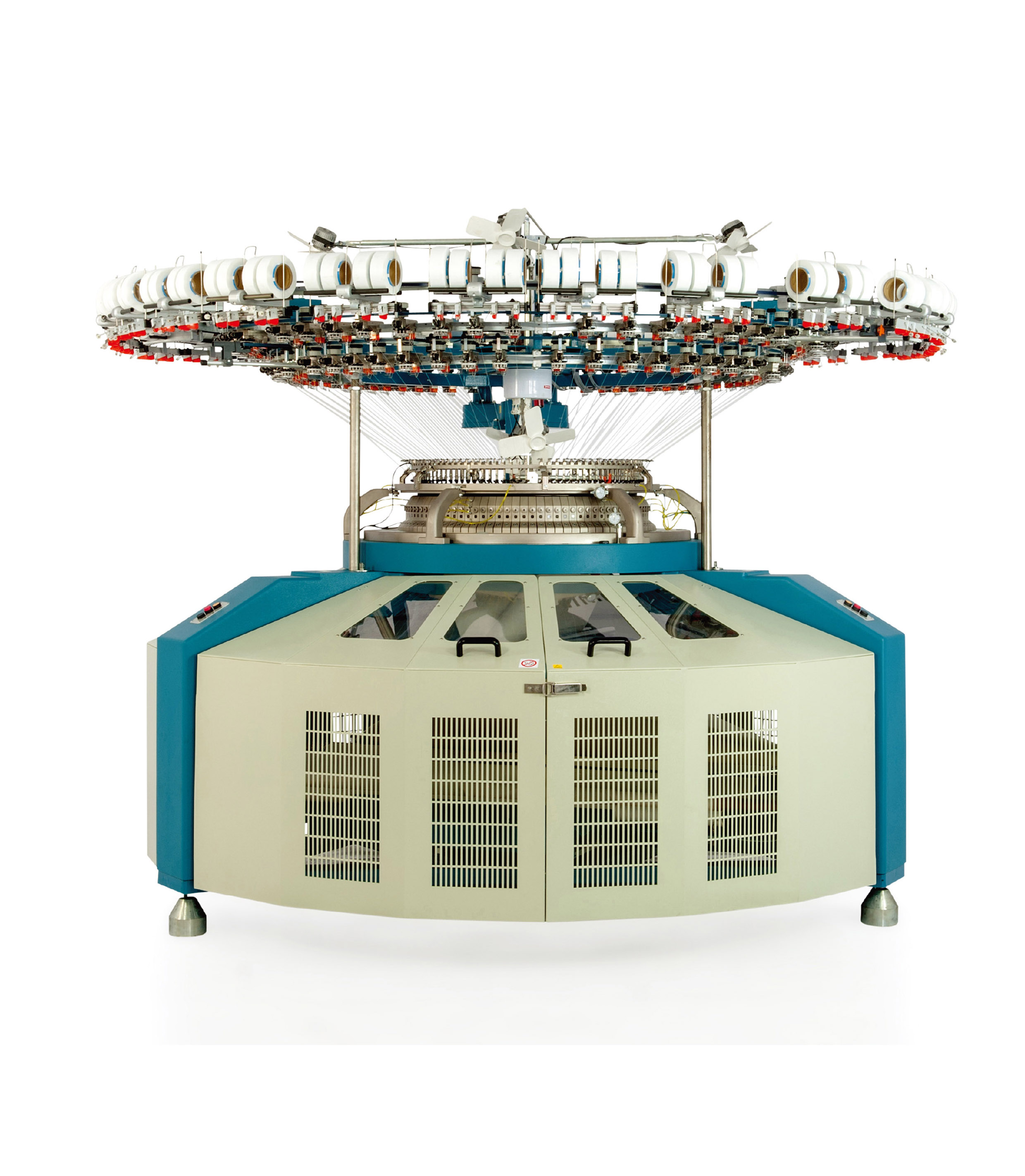

Machine can produce up to 2 cam track structures.

Holding-down jacks(Santoni Patent) ensures quick re-start of fabric after press-off.

No change in sinker timing required due to the absence of sinkers.

Advantage of sinker less technology(absence of sinkers and sinker cap):

·Zero lycra miss plating due to no major change in yarn guide position.

·Uniform loop formation as there are lesser deflection points for yarn(&lycra),results in lesser tension or abrasion on yarns while loop formation.

·Possibility to achieve 10% to 15% tighter loop lengths than possible on any machine with sinkers.

·Recovery after strech,percentage much higher compared to fabrics knitted on machines with sinkers.

·No sinker lines.

·Lesser power consumption by about 15%.

·Higher speed thanks to reduced friction of knitting elements.

·Longer needles life.


Yarn carrier in front of the raised needles for a perfect plating at high speed.

Individual cam shells made by special aluminum alloy(Ergal) having a great heat dissipation property.

Automatic positioning of the fabric take-down for quick removal of fabric roll.

Available with tubular as well as Open width frame(standard and industrial)equipped with motorized slitting and opening system by oblique bars(Vignoni patent).

Very compact open frame for an easy access to the knitting head.

Altas is available up to 90 gauge,the finest gauge ever built in the world!

Diameter 26" 30" 32" 34" 36" Gauge E40-E90
Number of feeders 76 88 94 100 106 Standard equipment -Aluminum side creel -Positive feeding units -Individual cam shells prepared to receive up to 4 cam tracks -Flip-up Zirconium yarn carrier for two and three yarn plating -Micrometrical stitch adjustment -Automatic oiling system -Electronic motor drive(inverter) -LFA-Yarn input measuring device -Eletronic needles detector -Motorized slitting and fabric opening system(Open width)
Optionals -Lycra feeding units -Open width frame(26" -32", 220cm - above 34",245 cm) -Lapping device system(tubular frame) -Industrial frame(both tubular and open width) -Cams for pique'-Mock Interlock Application area Underwear,Sportswear,Swimwear,Technical Textiles
