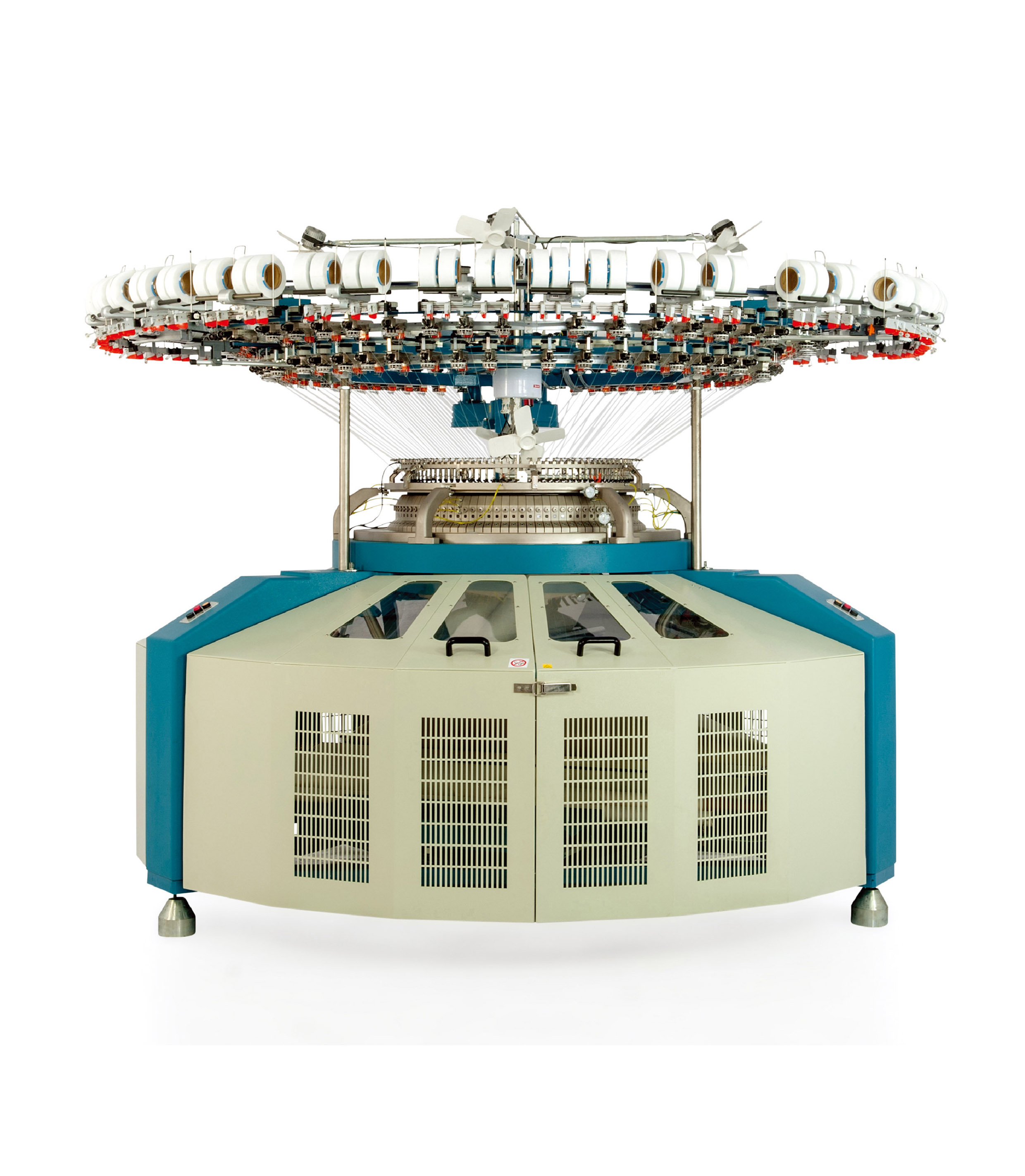

Product name: ZENIT 3.6
Product name:
ZENIT 3.6
Introduction:
Single jersey machine with 3.6 feeders per diameter inch capable to knit up to 4 track structures, with/without lycra.
Ideal to knit feeder stripes with lycra and three yarn plaiting.
Machine is equipped with economical & common needles easily available all over the world.
Double guidance sinker cams in combination with well designed sinkers with tail,ensures uniform loops all over the fabric &less wear &tear of sinkers.
Individual cam shells made by special aluminum alloy(ergal)having a great heat dissipation property.
Automatic positioning of the fabric take down for quick removal of fabric roll.
Centralized stitch control.
Available with tubular as well as Open width frame(standard and industrial)equipped with motorized slitting and opening system by oblique bars(Vignoni patent).
Open version can easily be converted into tubular from by a simple operation.
Very compact open frame for an easy access to the knitting head.
| Diameters | 30" 32" 34" | Gauge | 20-28 |
| No of Feeders | 108 114 122 | Max r.p.m. | 32 30 28 |
| Standard Equipment | -Aluminum side creel -Positive feeding units -Individual cam shells prepared to receive up to 4 cam tracks -Zirconium yarn guides suitable for three yarn plating -Automatic oiling system -Electronic motor drive(inverter) -LFA-Yarn input measuring device -Eletronic needles detectors -Motorized slitting and fabric opening system(Open width) | Optionals | -Lycra feeding units -Open width frame(26" 32", 220cm - above 34",245 cm) -Lapping device system(tubular frame) -Industrial frame(both tubular and open width) |
| Application area | Underwear,Sportswear,Swimwear,Medical Textiles |
| ZENIT 3.6 2021V01.pdf | Download PDF |
